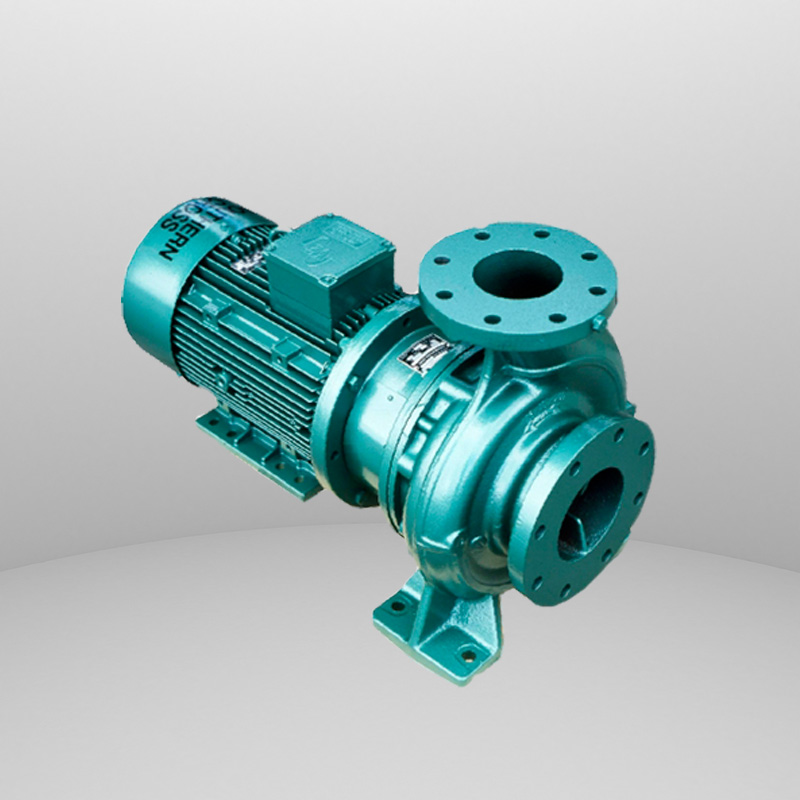

STARLINE - CLOSE COUPLED, ISO 2858

Designed for efficient and reliable general-purpose water transfer

General-purpose water transfer in industry, building services and irrigation

Space saving design
Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance
Australian designed and manufactured
Up to 250 litres per second discharge
Australian wide service and backup
ISO 9001 quality assured
32 to 200mm discharge
Wide range of options
Heads to 160 metres

Type 316 stainless steel shaft extension
S.G. cast iron motor shaft clamp
TEFC IP55 motor; rugged cast iron volute with integral suction and discharge flanges and mounting feet
Pressure rated to 1600kPa (160 metre head)
Cast iron impeller and backplate; stainless steel impeller nut
Rigid cast iron bell housing connects motor and pump housing
Single mechanical seal

Use of standard off-the-shelf foot and flanged electric motors with highly accurate clamp on shaft extensions;
Taper mounted and keyed impeller for easy removal from shaft during servicing and positive locking during operation
Heavy duty stainless steel shaft extensions for safe operation at high speed;
AS1830/T260 cast iron volute for added safety; reusable “O” ring body seal
Hydraulically and dynamically balanced impellers
Highly efficient suction performance from double curvature impeller vanes

Optional Extras

Zinc-free bronze wear rings for impeller, volute and backplate
optional single mechanical seals
optional motor specifications and classes works certified and witnessed tests for guaranteed performance
impeller turn-downs
pressed or welded steel baseplates

Maximum pumped liquid temperature for Southern Cross Starline pumps is 100°C using standard seals. Liquids up to 140°C can be handled using special seals. Consult Southern Cross Customer Service Unit for further information
